Osmo 395 nm LED-UV Lamp – Instant Curing for Professional Finishes
Product description
Description:
The perfect method for woodworkers seeking ultra-fast wood finishing combined with impeccable results. The Osmo 395 nm LED-UV Lamp transforms your project workflow: instant curing of Osmo LED-UV Smart Oil and professional performance, even at home.
Designed to work in synergy with Osmo LED Smart Oil, this lamp directed at the oiled surface accelerates curing in seconds. No more waiting for hours: your oiled wood surfaces are ready almost immediately.
The practical and compact format of the Osmo 395nm LED-UV Lamp fits easily into any workspace (workshop, job site, or home). It will save you an enormous amount of time by allowing you to apply two uniform coats of oil without sticky areas, enabling quick delivery of a flawless project.
Take your wood protection projects to the next level. Add the Osmo LED-UV Lamp to your toolbox and enjoy instant drying, a flawless finish, and professional performance from the very first use.
Features
- 395 nm UV light with 1000 mW/cm² light intensity for ultra-fast curing
- Compatible with Osmo LED Smart Oil only
- Two versions: “small” portable 5W (battery) or “large” plug-in 110V 15W
- Smooth, uniform finish without streaks
- Compact, ergonomic, and easy-to-handle format
- Reduces product waste and accelerates projects
For professional use only
Safety glasses must be worn at all times. Avoid any eye contact with UV light.
Do not touch the lamps or the irradiation head during operation, as severe burns may result from contact with these components.
The Osmo LED-UV lamp is available in 2 options:
- The “small” 5W battery-powered portable version, which requires 3 cross-passes on the surface to be dried. It comes in a sturdy plastic case.

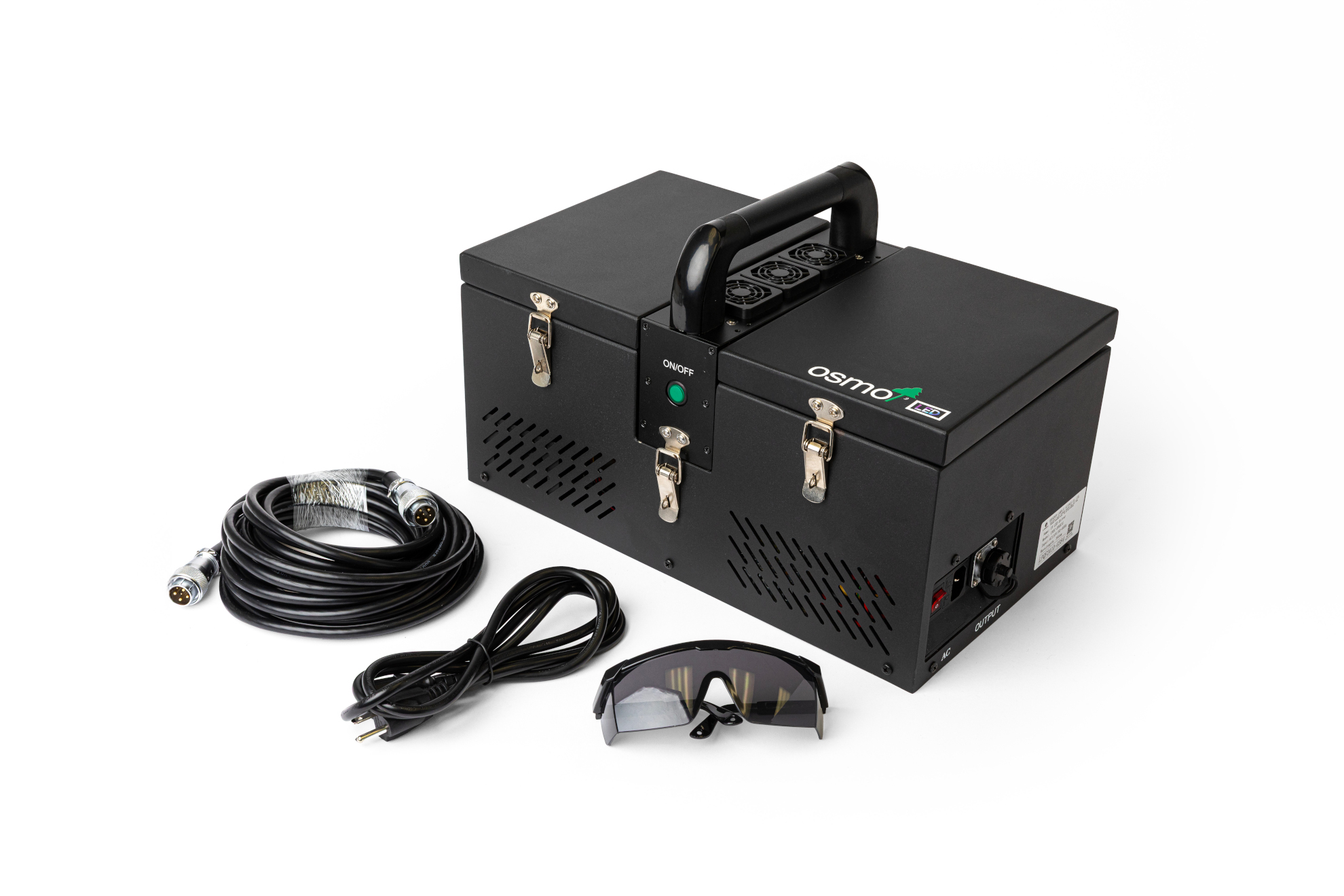

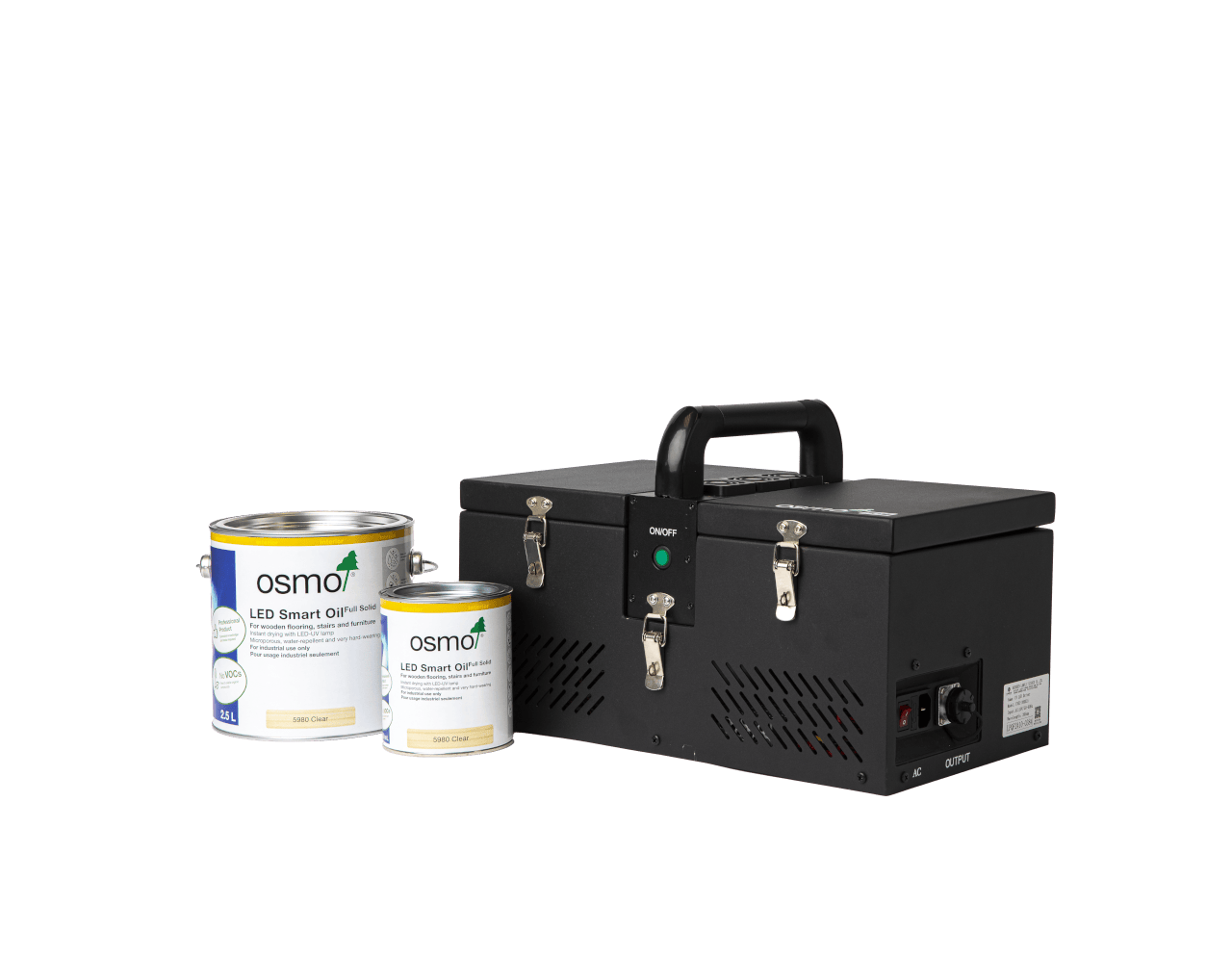

- The “large” 15W 110V powered version which requires 2 cross-passes on the surface to be dried. It comes in a sturdy metal case.
How to use
How to Use
LED Lamp Preparation:
- Connect the irradiation head to the control driver using the provided cable, ensuring each connection is properly inserted.
- Plug the power cord into the device, then connect it to a grounded 110 V outlet.
- Flip the main switch on the control module to power the system.
- Activate the irradiation head. Ensure it does not touch any surface to avoid burn risks.
- The equipment includes a thermal regulation system and will automatically shut off in case of overheating.
- Allow it to cool completely before resuming operation.
See the technical data sheet for further safety tips.
How to use the Osmo LED lamp:
Osmo LED-UV oil must be applied to the wood surface and buffed until no circular marks or visible excess remain.

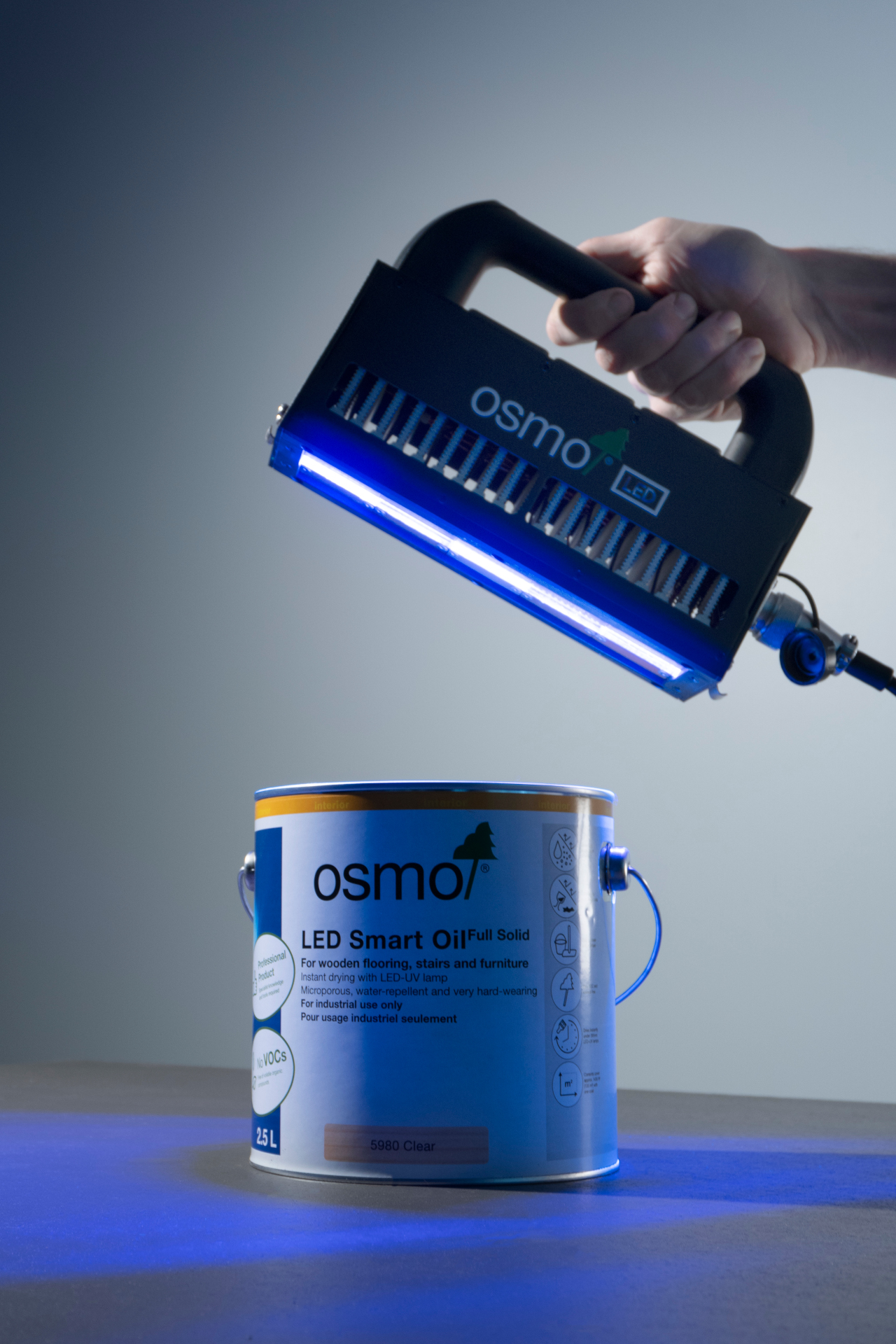

Using the Osmo 395 nm LED-UV lamp, slowly pass the curing lamp over the treated area at a speed of approximately 5 seconds per foot, maintaining the lamp at a height of 10 to 15 cm above the wood surface.
How to apply LED-UV oil and cure it with the Osmo Lamp
Essentials
Essentials
Product title
Product title
Product title
Product title
Q&A
Frequently Asked Questions
- Does the lamp work with oils other than Osmo LED Smart Oil?
It is optimized for LED Smart Oil. Results are not guaranteed with other products. - What is the difference between the portable and 110V versions?
The portable version (5W) is ideal for small projects like furniture and hard-to-reach areas. The 110V version (15W) offers higher power for large surfaces like floors. - How long does it take to dry one coat?
A few seconds are enough to cure LED Smart Oil. - Is it safe to use?
Yes, if the instructions are followed to the letter. Never look directly at the UV light or touch it. - Can it be used on already installed furniture?
Yes, the compact format allows for work even in tight spaces.
